Batch UI

The Batch UI lets you inspect the batch jobs submitted through the Kyuubi REST API without falling back to raw REST calls. From this page you can list, filter and paginate batches, open the Spark UI of a running batch, tail a batch’s log live, and cancel a batch that has not yet reached a terminal state.

Accessing the Batch Page

Open the Web UI and select Batch under the Management section in the left navigation bar.

Filtering and Pagination

By default the page shows the most recently created batches. Narrow the list with the filters at the top of the page, then click the search button:

Filter	Description
User	The user who submitted the batch
Batch Name	The batch name supplied at submission time
Batch Type	The batch type, either SPARK or PYSPARK
State	The batch state: PENDING, RUNNING, FINISHED, ERROR or CANCELED

The footer shows the range of batches currently displayed. Use Previous and Next to page through the results, and the refresh button to reload the current page.

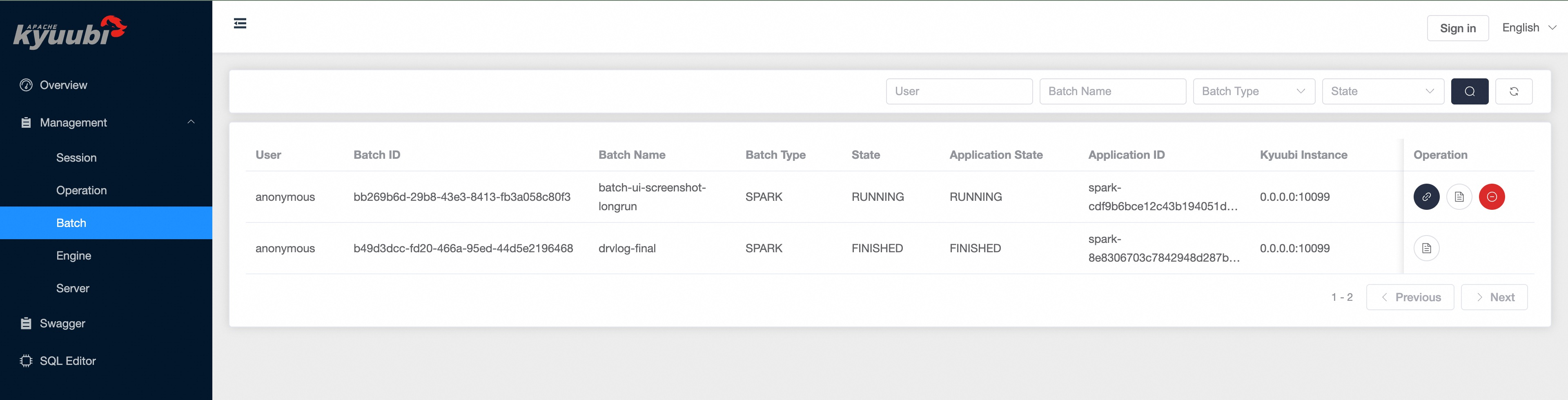

Batch List

Each row summarizes one batch:

Name	Description
User	The user who submitted the batch
Batch ID	The unique identifier of the batch
Batch Name	The batch name supplied at submission time
Batch Type	The batch type, either SPARK or PYSPARK
State	The batch state tracked by Kyuubi
Application State	The state of the underlying application reported by the cluster manager
Application ID	The application identifier assigned by the cluster manager (YARN, Kubernetes, etc.)
Kyuubi Instance	The Kyuubi server instance that owns the batch
Create Time	When the batch was submitted
End Time	When the batch reached a terminal state
Duration	The elapsed time between create time and end time
Application Diagnostic	The diagnostic message reported by the cluster manager, when available

Operations

The Operation column exposes per-batch actions:

1. Open the Spark UI. For a live batch that has an application URL, a link button opens the batch’s Spark driver UI. When kyuubi.frontend.rest.engine.ui.proxy.enabled is set to true, the UI is served through the Kyuubi engine-UI reverse proxy; otherwise the driver URL is opened directly. The link is hidden once the batch is terminal because the driver is no longer running.

2. View the log. Open a drawer that tails the batch’s server-side log. Toggle Follow to live-tail the log as it grows, or use Refresh to reload on demand. Only the latest lines are kept in the browser; a notice is shown when the log is truncated.

3. Cancel the batch. For a batch that is not yet in a terminal state, a cancel button asks for confirmation and then requests Kyuubi to cancel the batch. Terminal batches cannot be canceled.

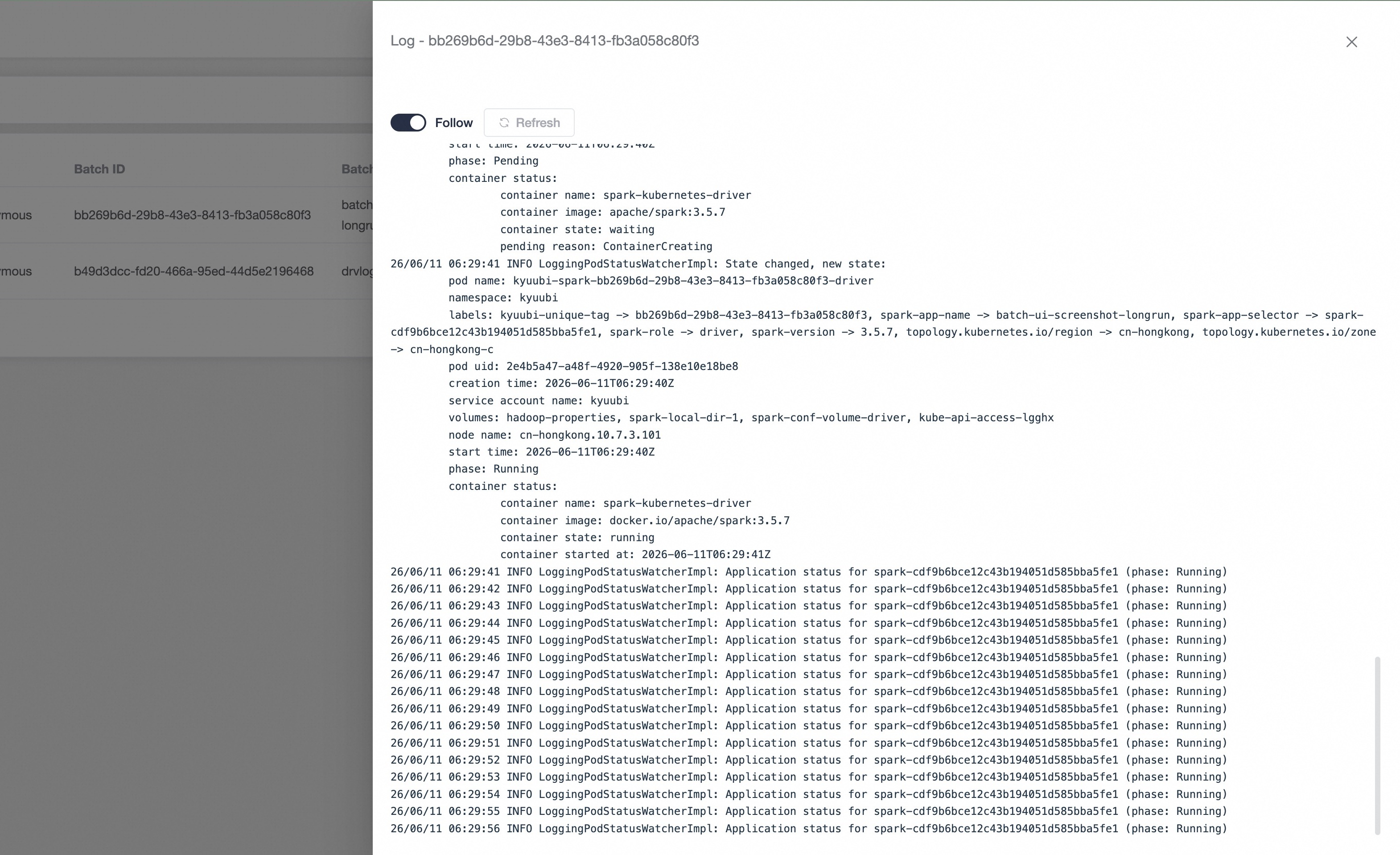

Opening the log viewer tails the batch’s log in place, updating as new lines arrive while Follow is on.
